Name: U Series
Brand: ANGEL Group

The ANGEL U Series Ultrafiltration Systems are engineered to deliver high-flow, reliable water purification for demanding food service environments. Equipped with advanced UF membranes, the system effectively removes residual chlorine, rust, colloids, impurities, and odor, improving water quality while preserving essential minerals. The high-capacity design supports continuous operation for busy kitchens, while automatic flushing helps maintain membrane performance and extends service life. Quick-change filter cartridges enable fast, hygienic replacement with minimal downtime, and flexible installation options allow easy integration into various layouts. The U Series is ideal for restaurants, fast food outlets, hotels, and other dining establishments, meeting the purification needs of steam cabinets, noodle cookers, stoves, soup pots, direct drinking water faucets, ice makers, and water dispensers.

Features

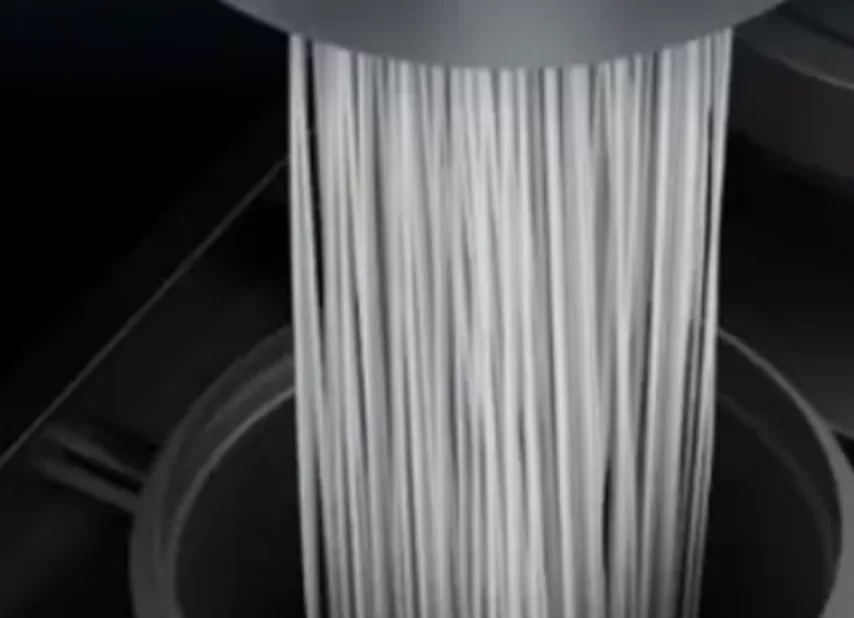

Improve Water Quality

The 0.01µm UF membrane effectively removes particles, colloids, and a wide range of bacteria and viruses.

High Flow Water

Parallel filter connection design delivers a powerful water supply of up to 13 L/min.

Auto-Flushing

Reduces buildup, helping extend filter lifespan.

DIY Water Distribution

Connect with other water treatment equipment to meet custom water usage needs.

Easy Filter Replacement

Twist-to-lock bayonet-style design for easy filter removal.

High Compatibility

Supports optional accessories like pressure gauges for enhanced functionality.

Specifications

Model	J3364-UFS500	J3364-UFS1000
Flow Rate	8.3 L/min (2 gpm)	13 L/min (3.66 gpm)
Filter	PP + UF + Carbon Fiber	PP + UF x 2 + Carbon Fiber
Total Filtered Water Capacity	30000 L (6600 gallons)	30000 L (6600 gallons)
Working Pressure	0.1-0.4 MPa	0.1-0.4 MPa
Operating Temperatures	4-40℃	4-40℃
Power Consumption	24 V, 5 W	24 V, 5 W
Dimensions (W x D x H)	495 x 148 x 644 mm	615 x 148 x 644 mm
