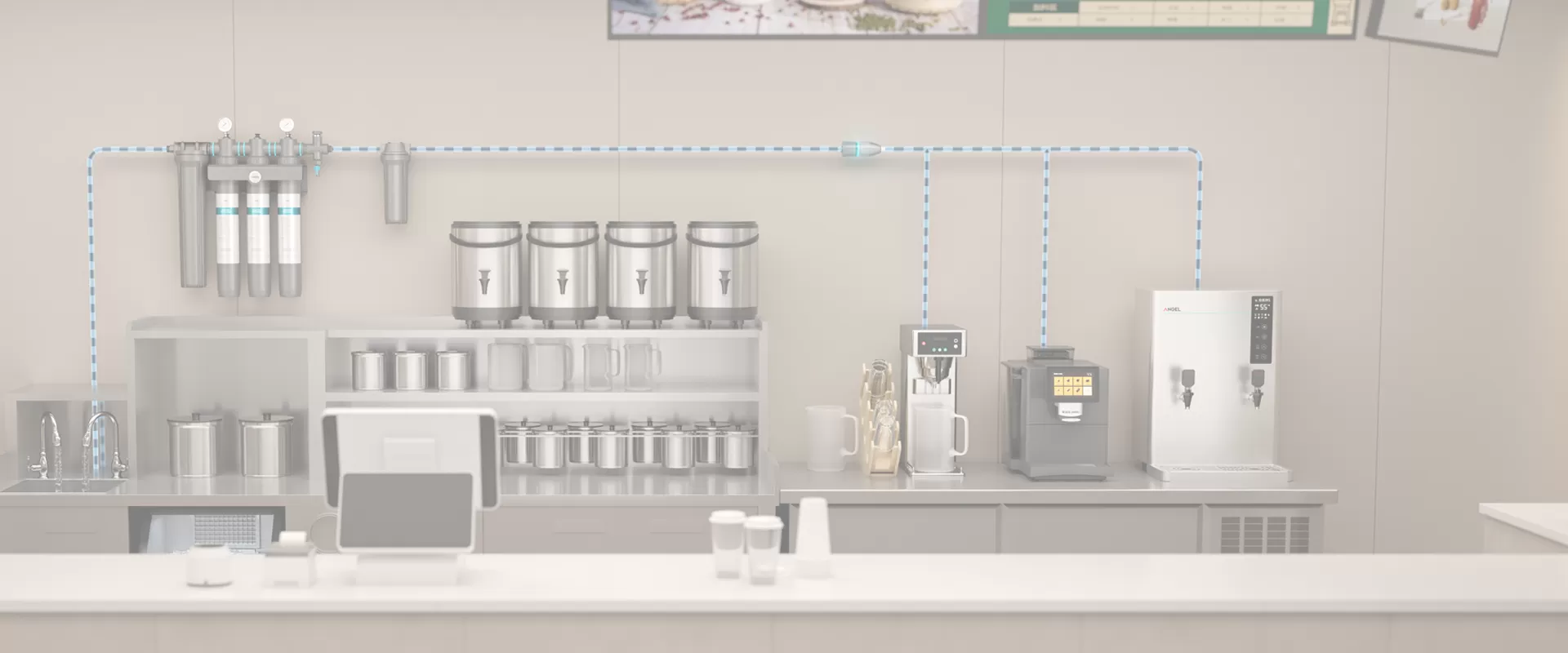

The C Series microfiltration system is designed to reduce chlorine, odors, and sediment that affect the taste of food and beverages, delivering clean, filtered water for food service providers. Featuring quick and hygienic cartridge replacement, it offers a convenient and reliable water purification solution. The system operates without electricity and produces no wastewater, allowing filtered water to flow directly to the faucet. By improving water quality, it helps keep equipment running smoothly and extends the service life of water-using appliances. With high flow capacity and versatile installation options, the C Series is well suited for commercial kitchens. It can be installed on foam walls, hollow brick walls, steel plate walls, and steel structure walls, making it adaptable to a wide range of food service environments.
Improve Water Quality
Advanced carbon fiber filtration removes chlorine, odors, and fine sediment effectively.
High Flow Water
Parallel filter connection design delivers a powerful water supply of up to 18.93 L/min.

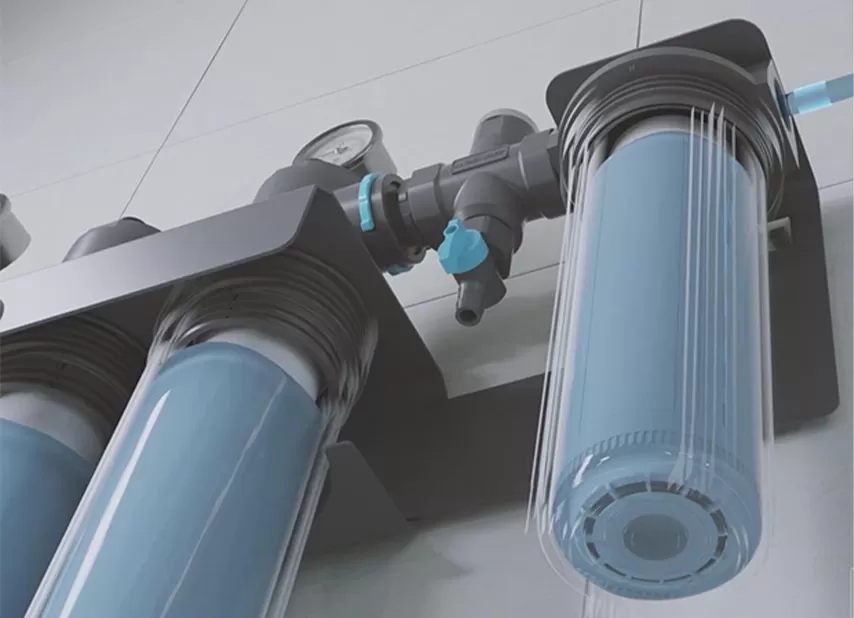

DIY Water Distribution
Connect with other water treatment equipment to meet custom water usage needs.

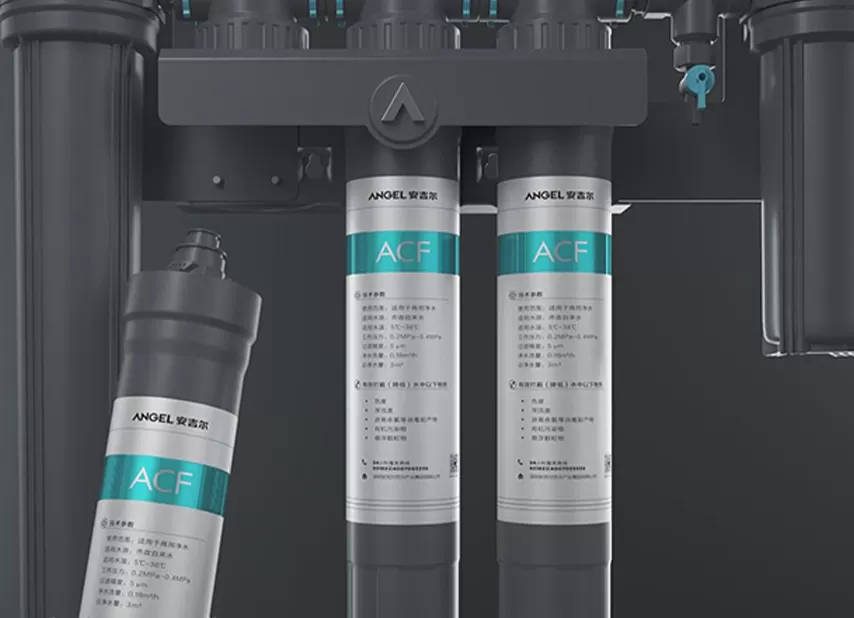

Easy Filter Replacement
Twist-to-lock bayonet-style design for easy filter removal.
Zero Wastewater
Delivers clean water with no wastewater produced during operation.

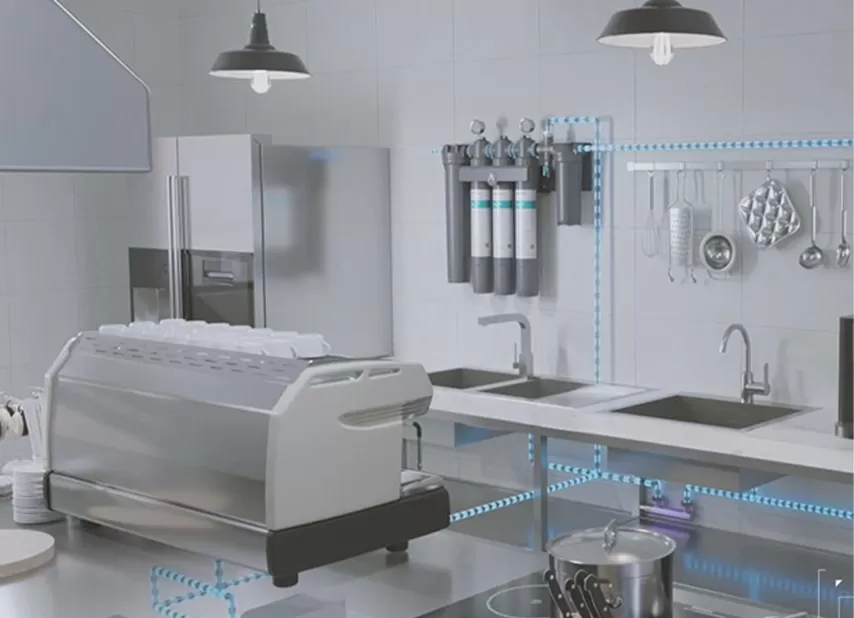

High Compatibility
Supports optional accessories like pressure gauges for enhanced functionality.
Model | J2810-CS500a | J2810-CS800a | J2810-CS1100a | J2810-CS1500a |
Flow Rate | 6.32 L/min (1.67 gpm) | 6.32 L/min (1.67 gpm) | 18.93 L/min (5 gpm) | 18.93 L/min (5 gpm) |
Filter | PP + Carbon Fiber | PP + Carbon Fiber x 2 | PP + Carbon Fiber x 3 | PP + Carbon Fiber x 4 |
Total Filtered Water Capacity | 34000 L (9000 gallons) | 68000 L (18000 gallons) | 102000 L (27000 gallons) | 136000 L (36000 gallons) |
Inlet Water Pressure | 0.2-0.4 MPa | 0.2-0.4 MPa | 0.2-0.4 MPa | 0.2-0.4 MPa |
Operating Temperatures | 4-40℃ | 4-40℃ | 4-40℃ | 4-40℃ |
Power Consumption | Non-electric | Non-electric | Non-electric | Non-electric |
Dimensions (W*D*H) | 294*144*634 mm | 412*144*634 mm | 534*144*634 mm | 654*144*634 mm |
