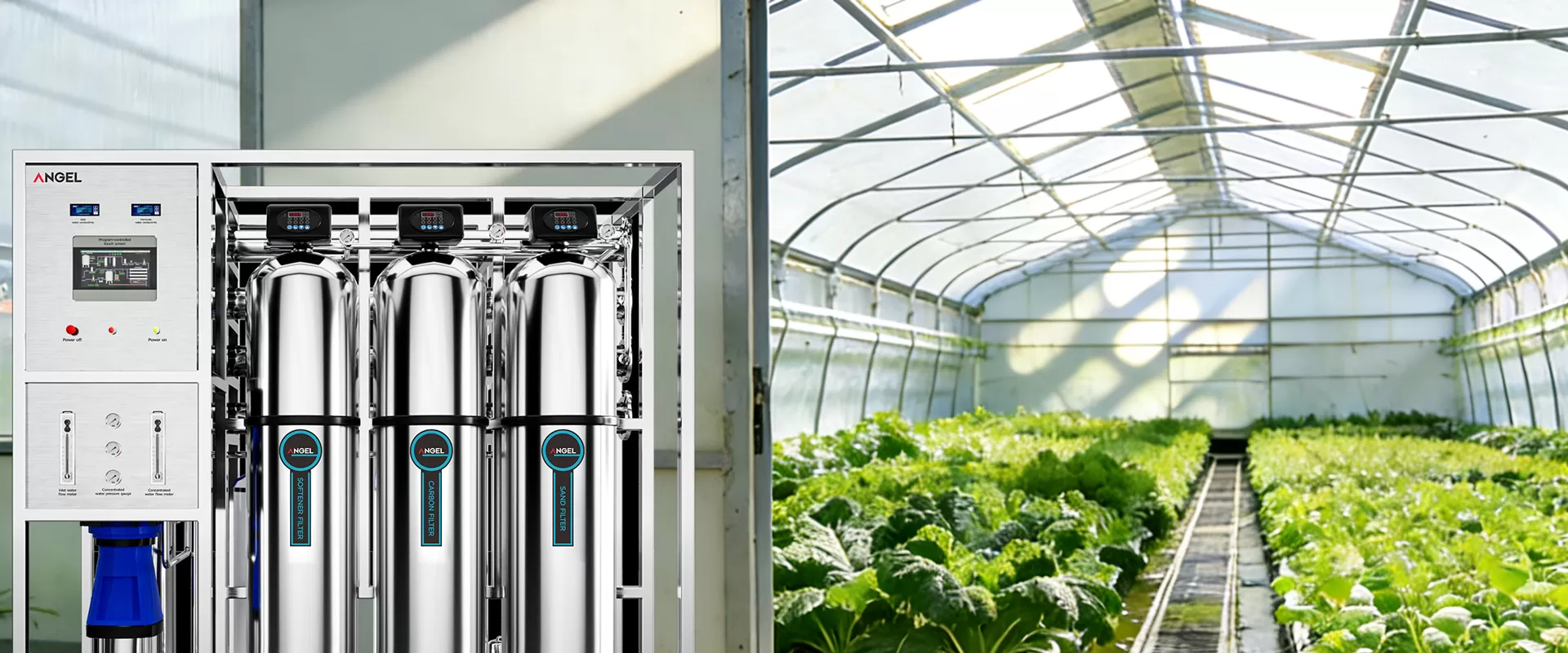

The J2314 series commercial RO system uses advanced reverse osmosis technology to deliver efficient, high‑output water purification for large‑demand applications. Designed for agriculture, medical facilities, hospitality, and light industrial use, it provides consistent water quality under continuous operation. The series is offered in four fixed‑capacity models—5,000, 10,000, 15,000, and 20,000 GPD—each built on a compact, skid‑mounted frame to minimize installation footprint and simplify service access.
Agriculture growers rely on precise environmental and nutrient management to achieve consistent, high‑quality yields. Water quality is a critical part of that control. Reverse osmosis (RO) purification removes dissolved salts and contaminants, delivering stable, low‑TDS water that supports accurate nutrient formulation, healthier plant growth, and stronger crop performance in hydroponic and controlled‑environment systems.
RO effectively reduces:
Dissolved salts and minerals (TDS)
Hardness such as calcium and magnesium
Chloride, sodium, sulfate, nitrate
Heavy metals like lead, arsenic, chromium
Iron and manganese (after proper pretreatment)
Organic compounds and chemicals
Microorganisms, including bacteria and viruses

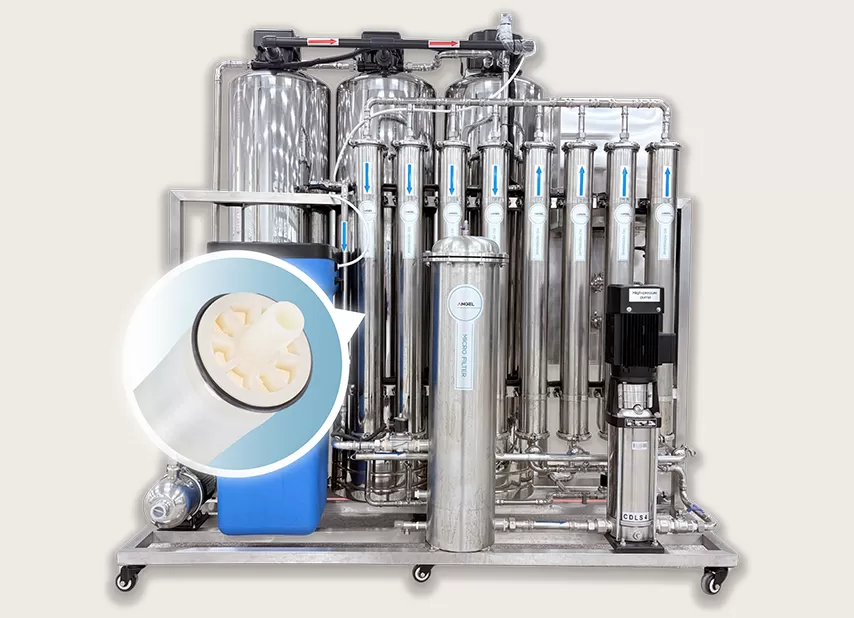

Defined Water Output Options
Four fixed‑capacity models, from 5,000, 10,000, 15,000, and 20,000 GPD, provide consistent performance without modular add‑ons. Each is engineered for reliable performance in a compact design.
Stainless Steel Filter Tank
304 stainless steel tank ensures durability, hygiene, and corrosion resistance.
Wide Application Use
Ideal for agriculture, commercial, and light industry requiring high-volume purified water.
RO System
Achieves up to 99+% reduction of dissolved contaminants, organic compounds, microbial organisms, and ultrafine suspended solids through advanced membrane separation.
Real-Time Display
Delivers live, side‑by‑side visibility of feed and permeate water, giving operators immediate insight into membrane performance, rejection efficiency, and overall system stability while enabling quick detection of early fouling or scaling.
Targeted-Filtration
A single system with tailored treatment steps for tap and well water to solve their unique water quality issues.
Efficient Recovery
Achieves up to a 5:1 production‑to‑waste ratio and up to 85%+ recovery, maximizing water savings and output while maintaining membrane‑safe operating conditions for long‑term performance.
Integrated Design
Pre-assembled and easy to install, reducing setup time and simplifying deployment.
Security Filter
Removes suspended particles larger than 5 µm, providing a protective barrier that prevents debris, sediment, and other harmful materials from reaching and potentially damaging the RO membrane.
UV Sterilization
Delivers high‑intensity ultraviolet disinfection to inactivate bacteria, viruses, and protozoan pathogens, maintaining microbiological integrity of the purified water. (Optional accessory)
Oxygen-Enriched
Adds a controlled dose of ozone to keep irrigation water clean and reduce bacteria buildup in lines and tanks. Extra oxygen in the water supports stronger roots, better nutrient uptake, and overall healthier plant growth.
Model | J2314ROS500C | J2314ROS1000C | J2314ROS1500C | J2314ROS2000C |
System Configuration | Integrated Reverse Osmosis Equipment (Main Unit) | |||
Feed Water Source | TDS < 1000 | |||
Desalination Rate | 99.6+% | |||
Product Water Flow | GPM: 3.5 GPH: 208 GPD: 5,000 | GPM: 7 GPH: 416 GPD: 10,000 | GPM: 10.5 GPH: 625 GPD: 15,000 | GPM: 14 GPH: 833 GPD: 20,000 |
Temperature | Max Feed Water Temperature: 100 °F Min Feed Water Temperature: 41 °F Max Product Water Temperature: 100 °F Min Product Water Temperature: 41 °F | |||
System Pressure | Rated Operating Pressure: 145 psi Max Feed Water Pressure: 58 psi Minimum Feed Water Pressure: 14.5 psi | |||
Feed Water Quality Requirements | Color: 15 units (degrees) Turbidity: 1NTU pH: 3-10 Iron: 0.3 mg/L Manganese: 0.1 mg/L Chloride: 250 mg/L | |||
Piping Connection Size | Inlet | |||
1” | 1-1/4” | 1-1/4” | 1-1/2” | |
Product Water Outlet | ||||
3/4” | 1” | 1” | 1” | |
Concentrate Water Outlet | ||||
3/4” | 1” | 1” | 1” | |
Voltage | AC240 V / 480 V | |||
Power | 2.68 hp | 3.35 hp | 4.7 hp | |
Dimensions (L x W x H) | 63" x 38" x 69" | 71" x 38" x 77" | 83" x 47" x 77" | |
Weight | 440 lb | 660 lb | 930 lb | 950 lb |
Number of RO Membranes | 3 | 6 | 9 | 12 |
Filtration Grade | 6 | |||
Sterilization Method | UV + Ozone (Optional) | |||
